SDA3 AC Transmission Diesel Locomotive
- 主要技术参数
|
轨距（Rail Gauge）
|
1000mm
|
|
传动方式（Transmission）
|
交-直-交流电传动（AC-DC-AC Electric Transmission）
|
|
轴式(Axle Arrangement)
|
Co - Co
|
|
轮径（Normal Wheel Diameter）
|
1067mm
|
|
轴重（Axle Load）
|
20t
|
|
整备重量（Service Weight）
|
120t
|
|
柴油机装车功率（Operating Power）
|
2800kW
|
|
柴油机标定功率（Nominal Power）
|
2380kW
|
|
最大运用速度（Max. Operating Speed）
|
100km/h
|
|
持续速度(Continuous Speed)
|
17.7km/h
|
|
最大起动牵引力(Max. Starting Tractive Effort)
|
460kN
|
|
持续牵引力(Continuous Tractive Effort)
|
360kN
|
|
通过最小曲线半径(Min.Radius of Curvature Negotiated)
|
130m
|
|
燃油箱容量(Capacity of Fuel Tank)
|
5500L
|
|
车钩中心线距轨面高度(Coupler Center Height over the Track Surface)
|
850mm
|
|
机车外形尺寸（Overall Dimensions）
|
20490X2850X4000mm
|

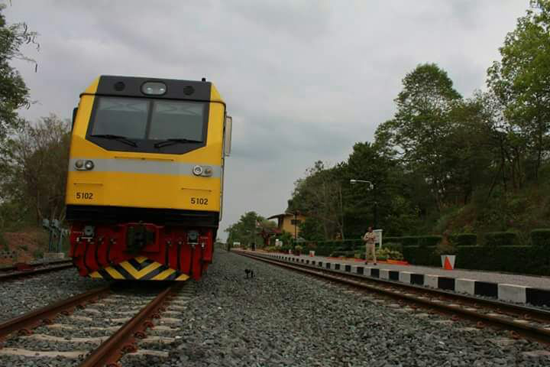

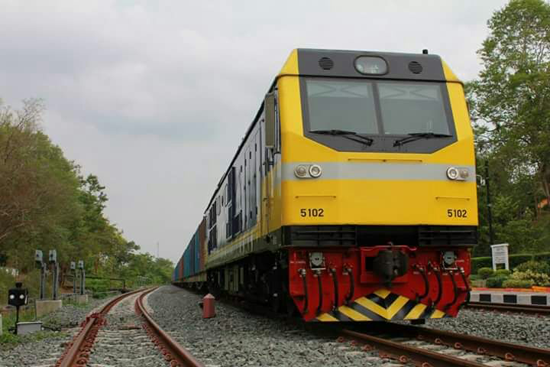

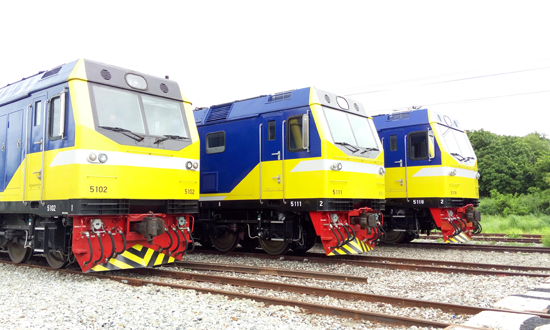

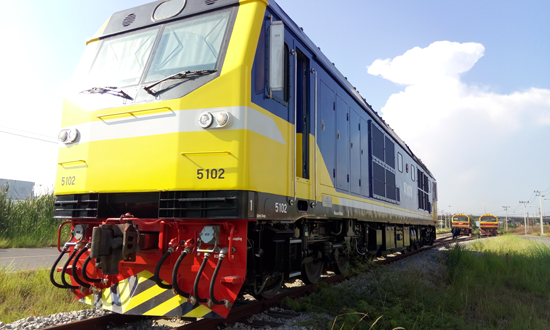

SDA3型内燃机车是戚墅堰公司为满足泰国干线客、货运运输需求而专门研制的内燃机车，采用交-直-交电传动，轨距1000mm，装车功率2380kW，轴重20t，最大运行速度100km/h,采用内走廊双司机室结构，侧壁承载式车体，机车装用CAT C175-16型电喷柴油机、交流牵引系统、微机网络控制系统、辅机交流电传动系统、具有全功率自负荷试验功能的电阻制动系统、WABTEC 26-LA空气制动系统和三轴滚抱径向转向架，具有双机重联功能。
The SDA3 locomotive is specially developed and manufactured by CRRC Qishuyan Co., Ltd. for the transportation of passenger and freight using in Thailand mainline.The locomotive adopts AC-DC-AC electric transmission , and its gauge is 1000mm. The maximum service power is 2380kW. The axle load of the locomotive is 20t and the maximum speed is 100km/h. The locomotive adopts inner corridor and side wall bearing structure with double driver cabs. The locomotive is equipped with CAT C175-16 type diesel engine, AC traction system, computer logic control technique, WABTEC 26-LA air brake system. The bogie is three-axle radial bogie with rolling bearing axle-huge suspension. The locomotive has the function of double heading.
